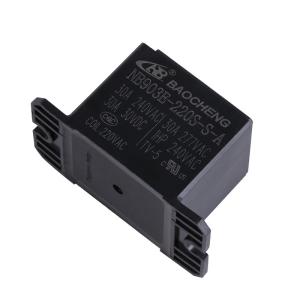

NO Sealed AC 220V 30A Power Relay SPST NB903E-220S-S-A For Industry Control System

Brand Name : WRG

Model Number : NB903E-220S-S-A

Certification : TUV/CQC/UL

Place of Origin : China

MOQ : 100pcs

Price : negotiable

Payment Terms : T/T, Western Union, L/C, MoneyGram

Supply Ability : 500k per month

Delivery Time : 5-8days

Packaging Details : standard or customization

Keyword : 30A Power Relay

Coil input voltage : AC220V

Contact rating : 30A 240VAC,30A 30VDC,30A 277VAC,1HP 240VAC,TV-5

Enclosure type : Sealed-type

Features\ : environmental-friendly

Dimension LxWxH(mm) : 50.2*27*28

Weight(g) : Approx. 33

Housing color : black

Contact Now

NO Sealed AC 220V 30A Power Relay SPST NB903E-220S-S-A For Industry Control System

30A Power Relay Description:
NBC 903 series reply, is the one input voltage with both DC and AC to choose from, maximum current 30A or 40A for options, flange and QT terminal type for heavy-duty, dielectric withstand voltage have 2.5kv and 4kv to switch,environmental-friendly product, particularly applies to automotive manufacturing, industrial control system.

30A Power Relay Features:
1. SPST, flange, and quick terminal
2. rated current 40A or 30A to select

3. class F insulation

4. environmental-friendly

30A Power Relay Note:

1. Applying under a clean environment(excluding H 2 S, SO2, NO2, dust contaminants), dust-proof type is recommended; Applying under a polluted environment(containing H 2 S, SO2, NO2, dust contaminants), sealed type is recommended, and please confirm during practical applying；
2. When installed on PCB, and entire washing is needed, please notify us before ordering, so as to provide proper items;
3. If dielectric strength between coil&contacts has to be over 2500VAC, please notify us before ordering, so as to provide proper items;

30A Power Relay Specification:

Coil data:
Coil input voltage					5/9/12/24VDC
Coil power					D type:450mW,L type:200mW
Response voltage					＞75％(Room temp.)
Drog out voltage					＜5％(Room temp.)
Operating time / Release time					Less than 8ms/Less than 5ms
