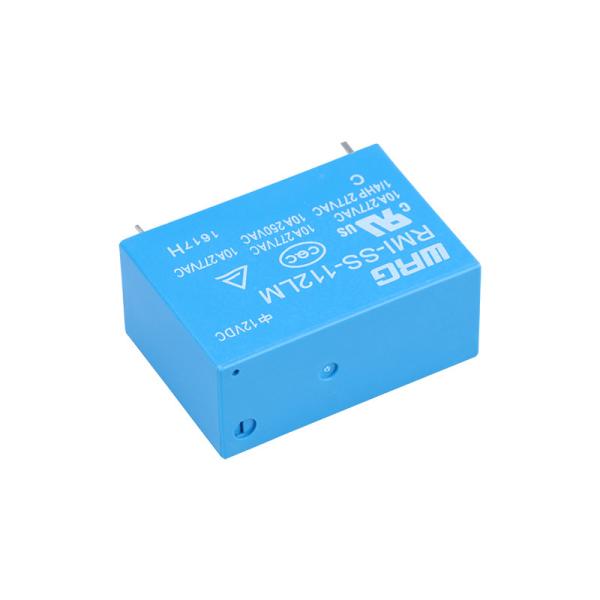

10 Amp 12V SPST Relay 0.54W PCB Mount Dielectric Withstand 5KV For Electric Cooker
12V SPST Relay Description:
Power Relay RMI series are low current 16A or lower, coil input voltage 5/9/12/18/48v available, and meet with anti-explosion safety standard, dielectric withstand 5KM between coil and contact, enough insulation distance for control switch, particularly are applied
in small-appliance.
12V SPST Relay Features:
1. flux-resistance
2. 5kv dielectric insulation distance between coil and contact
3. 60079-15 anti-explosion safety standard is approved
12V SPST Relay Specification:
| General data |
| Rated withstand impulse voltage | coil contact | 5kV AC/1min |
| between contact | 1kV AC/1min |
| Surge voltage | 10kV AC(1.2/50μs) |
| Insulation resistance | 1000MΩ(500VDC) |
| Vibration | Fault 10-55Hz(amplitude 1.5mm) |
| Endurance 10-55Hz(amplitude 1.5mm) |
| Operating humidity | 20 ~ 85％ |
| Dimension LxWxH(mm) | 29.2x12.8x20.6 |
| Enclosure type | Flux-resistance, sealed |
| Mounting | PCB |
| Weight(g) | 14 |
| Certifications | cULus:E345228/TUV:R50242245/CQC:CQC11002066332 |
For further datasheets, please click the link below or contact us.
RMI & RMIH Series.pdf
12V SPST Relay FAQ:
Q1: What is the delivery time like?
A1: If we have no stocks, usually have a one-month lead time, If we have stocks, will ship them in 3-7days to the destination in China.
Q2: How about after-sales service?
A2: If have any problems, please feel free to contact us by social App, phone call, or e-mail, we would like to solve them and do better for you
